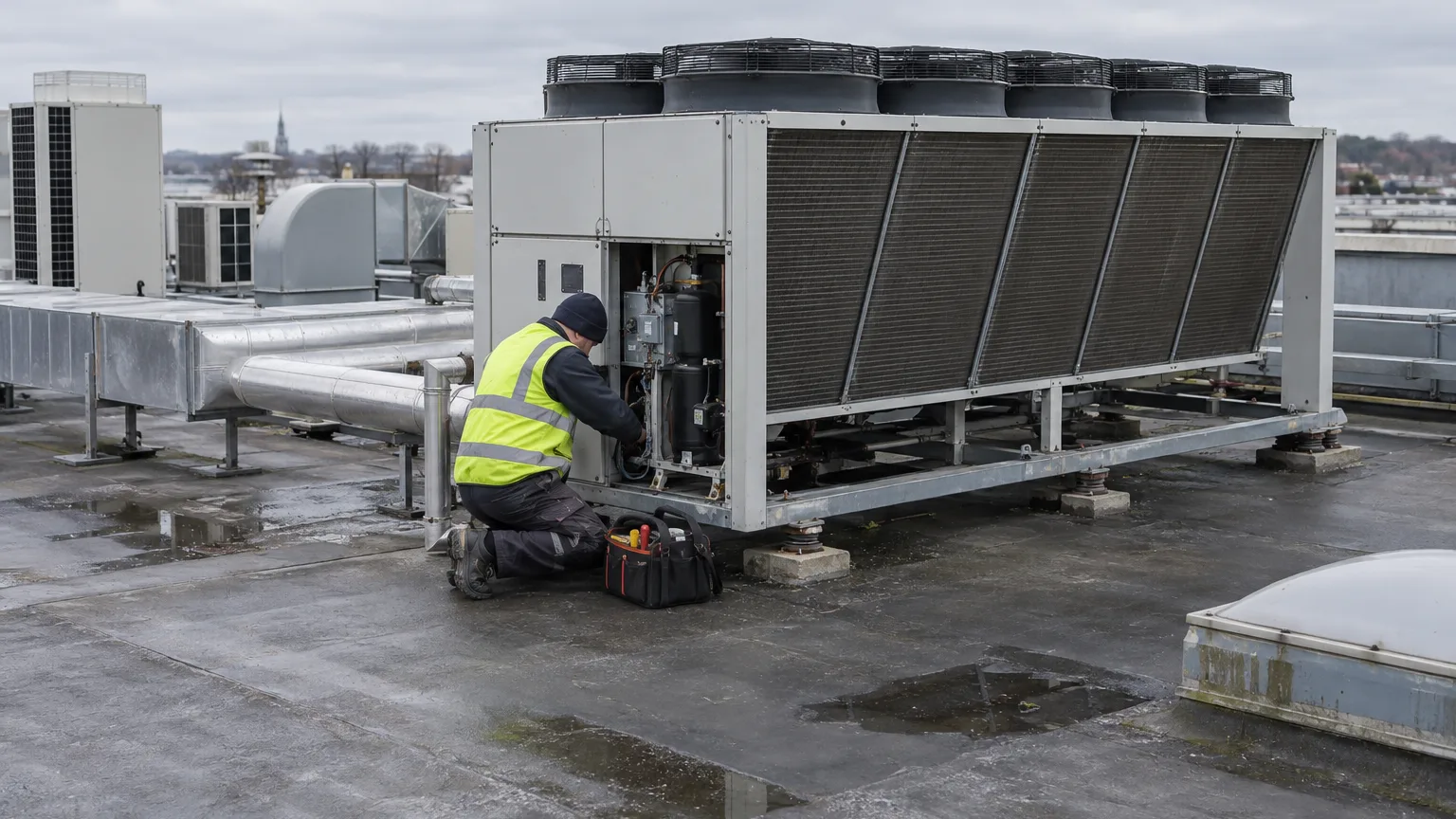

A chiller or a rooftop unit already knows a great deal about itself, and keeps it in a controller nobody is standing next to. Reading that controller and a few added sensors over cellular puts every unit you have shipped in front of your service team.
Supply and return temperature, side by side over time, show whether the unit is doing the job it was sold to do.
An alarm on its own is a callout. An alarm with the pressures and currents from the minutes before it is a diagnosis.
The same duty at a higher current this year than last is the earliest sign of a unit that needs attention, and it only shows in a record.
A starting list, not a fixed kit. The ports are set from the dashboard, so the same controller takes a different mix of sensors on a different model.
| Signal | How it is read | What it tells you |
|---|---|---|
| Supply and return temperature | 1-Wire or PT1000 probes on the pipework | Whether the unit delivers its duty |
| Refrigerant pressures | Analogue pressure transducers | High and low side behaviour before a trip |
| Compressor and fan current | Clamp-on current sensors over RS485 | Run time, staging and rising load |
| General alarm | Dry contact on a digital input | A fault, the moment it happens |
| Unit controller | RS485 Modbus RTU, from your register map | Setpoints, operating states and alarm codes |
Four ports on one controller, and RS485 devices share a bus, so most of this list fits on a single unit.
One machine reporting is a gadget. Every machine you have shipped reporting to the same place is a service business.
Each machine reports to the same cloud. Your service desk sees which units are running, which are in alarm and which have gone quiet, before the customer calls.
Accounts nest: you sit above your dealers, and each dealer above its customers. A parent account cannot grant more than it holds, and a unit can be shared with a service company without handing over a login.
Readings and events are stored with their time and export to Excel, for a warranty claim, a service report or a disagreement about what happened and when.
A REST API with scoped tokens covers what the dashboard covers, so fleet data can feed your service system, your ERP or your customer portal directly.
The controller takes 6 to 32 V DC, so it runs from a 12 or 24 V supply already on the machine. Its internal rechargeable battery keeps it reporting after the machine loses power, which is when the reading matters most.
It connects over 4G-LTE from wherever the machine is installed. There are no Wi-Fi credentials to collect and no IT department to convince at each customer.
If the machine already has a controller with an RS485 Modbus RTU port, give us its register map and we add it as a supported device. Its values and alarms then arrive alongside the sensor readings.
The web dashboard is served on your domain with your name, logo and colours, and the iOS and Android apps are published under your own developer accounts. Your customers log in to your product.
Readings are held on the device while the network is down and sent in order when it returns, so the record has no gap where the incident was.
A building management system belongs to the building owner and stops at the site boundary. This reports to you, the manufacturer, across every site, without asking each owner for a way into their network.
If the controller has an RS485 Modbus RTU port, yes. You supply the register map and we add it as a supported device.
Either. Every controller comes with OmniCloud included, and the REST API does what the dashboard does if you would rather build your own front end on top of it.
The supply voltage available on the machine, the signals you want reported, the register map if the machine has a Modbus controller, and how your dealers and customers should be separated. A first batch on machines already in the field is the usual way to begin.
Over the air, by cellular. Where there is no network at all, the unit raises its own Wi-Fi access point and takes the update from a phone or laptop beside it.
What it is, what you want it to report, and who needs to see which units. We come back with how the controller wires in and how the accounts would be laid out.
Talk to us →
